Products

Here you will find our innovative hardware solutions for GPS tracking and digital data acquisition.

Products for rail transport

Online portal Telematik360

is an open platform for telematics data of the transport and logistics industry designed for rail traffic.

Internet platform for your telematics data

Optimize your transport processes and analyze operating and sensor data.

Keep the perspective

The map view provides a good overview of the telematics devices you are using and you can get the right information with just a few clicks.

update service

Continuous further development and update service of the platform.

4 fields overview

TRACKCUBE 6H4

GPS tracking and data acquisition with solar cell and lithium-ion battery for additional power supply with LTE support.

solar panel

Supports this with its solar module
Topic of energy harvesting during operation.

certification

Railway applications acc. DIN EN 50121-3-2, DIN EN 50155, DIN EN 45545, CE conformity.

update service

Firmware via radio and internet platform.

TRACKCUBE 6D

TrackCube 6D with working direction.

solar panel

Supports this with its solar module
Topic of energy harvesting during operation.

certification

Railway applications acc. DIN EN 50121-3-2, DIN EN 50155, DIN EN 45545, CE conformity.

update service

Firmware via radio and internet platform.

TrackCube 6B EX

TrackCube 6B Ex is a monitoring and locating system in explosion-proof design.

ATEX directive certified

TrackCube 6B EX is designed for use in Zone 1 and for operation on hazardous goods vehicles.

certifications

ATEX/IECEx Cert. No.: KIWA 20ATEX0038 X, IECEx PTZ 18.0011 X
ATEX protection class gas: Ex II 2 G Ex ib[ia Ga] IIC T4 GB
ATEX protection class dust: Ex II 2 D Ex ib[ia Da] IIIC T135°C DB
Railway certification: EN 50121-3-2, EN 50155, CE conformity.

update service

Firmware via radio and internet platform.

GPS GATEWAY

GPS tracking and data collection for locomotives.

Certifications:
  • DIN EN 50 121-3-2
  • EN 61 373
  • EN 60068-2-xx
  • EN 50 155
  • DB specifications 416.6061, V.1.2
Exact position determination

System solution for locating locomotives, application area ESF Energy-saving driving style.

update service

Firmware over the air.

GSM GATEWAY

Data communication between DB AG control centers and locomotives.

Certifications:
  • DIN EN 50 121-3-2
  • EN 50 121-4
  • EN 61 373
  • EN 60068-2-xx
  • EN 50 155
  • EN 45545
Timetable data and passenger information system

Exchange of current timetable data and communication via the coach bus.

update service

Firmware over the air.

WS-D1

is a sensor used on freight cars to detect the loading condition full/empty.

Installation

Activation via magnetic switch, from the outside of the housing using a permanent magnet.

radio interface

2.4 GHz short-range radio (ITSSIF2 Ready) for data communication with the basic telematics device.

update service

Firmware download via radio.

WS-D1 flat position sensor

is a sensor used on freight cars to detect flat spots.

Installation

Activation via magnetic switch, from the outside of the housing using a permanent magnet.

Flat spot detection

The detection of flat spots on the wheelsets of a rail car is of crucial importance for the safety and reliable operation of the rail transport system. Flat spots can occur due to permanent deformation of the wheel arch and lead to uneven wear of the rails, damage to the track material and increased noise levels during travel. A radio sensor is used to detect and rectify flat spots in good time. It continuously monitors the condition of the wheels during transport and can report any anomalies.

update service

Firmware download via radio.

WS-B1/WS-B2

The WS-B1/WS-B2 sensor helps to detect the handbrake position. As a result, applied handbrake positions can be quickly detected and the generation of flat spots on equipped wagons can be tracked and avoided.

Installation

Activation via magnetic switch, from the outside of the housing using a permanent magnet.

Detection of the handbrake position

The WS-B1 sensor detects the handbrake position via the inclination of the handbrake bracket.

The WS-B2 sensor detects the handbrake position via rotation of the handbrake wheel.

update service

Firmware download via radio.

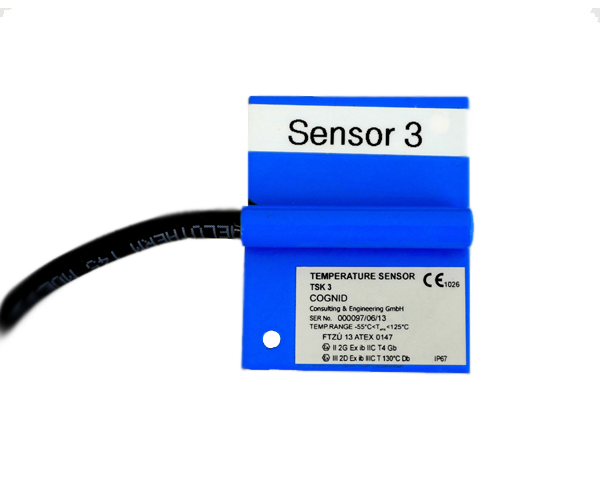

TSK-3

The TSK3 temperature sensor is the EX approved wired sensing solution for monitoring temperatures.

Flexible

For example, the sensor can be glued directly to the surface.

EX approved

Gases and vapours: II 2G Ex ib IIC T4 Gb.

Dust: II 2D Ex ib IIIC T135°C Db.

Gases and vapours: II 2G Ex ib IIC T3 Gb.

Dust: II 2D Ex ib IIIC T145°C Db.

High-quality

Halogen-free, weather-resistant and oil-resistant.
