WS-D1
WS-D1
WS-D1

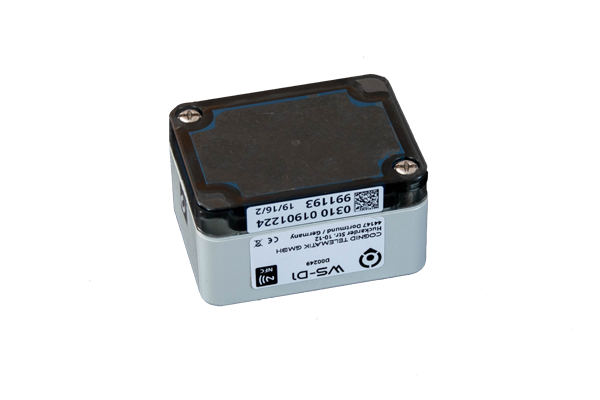

is a sensor used on freight wagons to detect the full / empty loading status. The condition is detected via the compression/rebound of the freight wagon during loading and unloading, which results in a significant improvement in wagon management.
performance characteristics
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Lithium primary cell for a service life of more than 6 years.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Sensors for detecting the deflection of a freight car.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
3-axis accelerometer to detect shock and movement.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
2.4 GHz radio interface for data communication “ITSS IF2 Ready”.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Extremely robust design tested acc. DIN EN 61373 (category 3).
Assembly
We will support you with the installation and are happy to answer any questions you may have.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Mounting bracket for attachment to the anti-lift device. (D00249).
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Mounting plate for gluing and clipping to the bogie frame (D00288).
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Other mounting plates for gluing, screwing, clipping, riveting, welding available.
functions
The sensor is designed for a wide range of applications and always delivers reliable data.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Commissioning: Activation via magnetic switch, from the outside of the housing using a permanent magnet.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Sensor messages: State loaded or unloaded (full / empty). Shock and motion detection.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Radio interface: 2.4 GHz short-range radio (ITSS IF2 Ready) for data communication with the basic telematics device.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Update service: Firmware download via radio.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Datenblatt
WS-D1 lift-off protection
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Datenblatt
WS-D1 Abhebesicherung
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Datenblatt
WS-D1 bogie frame
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Datenblatt
WS-D1 Drehgestellrahmen
technology
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Power supply: lithium battery.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Motion Detection: 3 axis acceleration sensor.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Antennas: integrated short-range radio antenna.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Radio standard: 2.4 GHz, “ITSS IF2 Ready”.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Housing dimensions: L 65 x W 50 x H 36 [mm].
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Operating temperature: -40°C to +80°C.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Weight: approx. 150 g / 430 g (without / with mounting bracket).
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Degree of protection: IP69, acc. DIN EN 60529 through full encapsulation.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Certification: Railway applications acc. DIN EN 50121-3-2, DIN EN 50155, DIN EN 61373 (Cat. 3), CE conformity.
![](https://cognid.de/wp-content/uploads/2021/06/COGNID-LogoEngel_klein.png)
Variants: D00288 (mounting on bogie frame) // D00249 (mounting on lift-off safety device).
